Bevel gears are used to transfer motion and power between two intersecting shafts. In general machinery, the Angle of intersection between two shafts of bevel gears is equal to 90° (but may not be equal to 90°). Similar to cylindrical gears, bevel gears are divided into cones, tooth cones, root cones, and base cones. The cone has a large end and a small end, and the circles corresponding to the large end are called the indexing circle (whose radius is R), the apical circle, the dentate circle, and the base circle respectively. The motion of a pair of bevel gears is equivalent to the pure rolling of a pair of pitch cones. We provide design, analysis, and drafting services, ranging from concept to design and manufacturing.

We hold the expertise in manufacturing high-grade bevel gear. Fabricated by using the highest grade raw materials, these straight tooth geometrical gears are highly acknowledged across the globe for their durability, toughness, and high tensile strength. We also provide customization of these gears as per customers’ requirements.

Our gears are known for their consistency, precision, and dependability. Whether your order is large or small, standard or custom, the team at AVIRAT Gears is ready to partner with you on your next bevel gear project.

Used of Bevel Gears:

You’ll find bevel gears in a number of everyday items, devices, and machines, including automobiles, printing presses, power plants, cooling towers, marine applications, steel plants, and railway track inspection machines.

We manufacture Bevel Gears with following specifications:

1. Diameter: up to a maximum 500mm in diameter.
2. Module: 0.5 Module to 6 Module

Types of Bevel Gear:

1. Ground Spiral Bevel Gear:
- Ground spiral bevel gears are used for demanding applications with the highest accuracies.
- Benefits include lower noise, higher rpm capabilities, improved surface finish, and lower vibrations

2. Hard Cut Spiral Bevel Gear:
- High power capacity and excellent surface finishes are offered with hard cut spiral bevel gears

3. Lapped Spiral Bevel Gear:
- High contact ratio with multiple teeth in mesh and localized contact patterns for smooth running

4. Ground Straight Bevel Gear:
- This is a unique offering that we provide
- Master straight bevel gears
- Higher accuracies, reduced distortion and improved running conditions

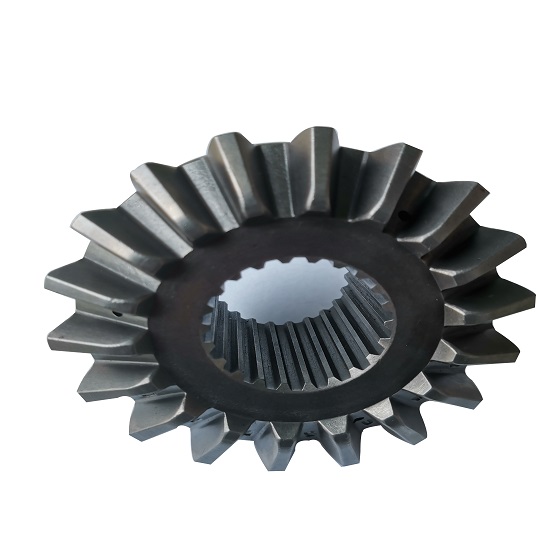

5. Straight Bevel Gear:
- Localized contact patterns assist in smoother running straight bevel gears

6. Angular Bevel Gear:
- Bevel gears above and below 90 degree shaft angles can be manufactured to your specifications
